Wire to Board ConnectorsPitch_1.25FI
  M125H M125AH 11251 H13H H14H Next Page

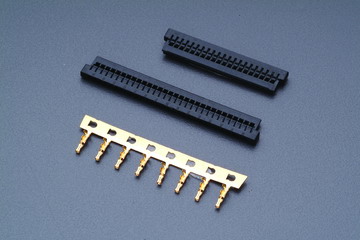

Wire to Board Connectors - Pitch_1.25 : FI
Model Properties PDF
F001H Housing
F001 Terminal
F001PS Header
Current rating : 1A AC,DCVoltage rating : 50V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/20mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 100MΩ MIN.Withstanding voltage : 500V AC/minuteApplicable wire : AWG#28-#32
Download PDF for this Series: Download PDF
