Wire to Board ConnectorsPitch_2.512500H
  12500H 250H 2501H 2530 2570H Next Page

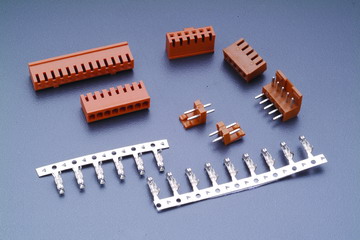

Wire to Board Connectors - Pitch_2.5 : 12500H
Model Properties PDF
12500H Housing
12500 Terminal
12500PS Straight Headers
12500PR Right Angle Headers
12500H
Specifications
Current rating : 3A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 1000MΩ MIN.Withstanding voltage : 800V AC/minuteApplicable wire : AWG#22-28
Download PDF for this Series: Download PDF
