Wire to Board ConnectorsPitch_2.5250H
  12500H 250H 2501H 2530 2570H Next Page

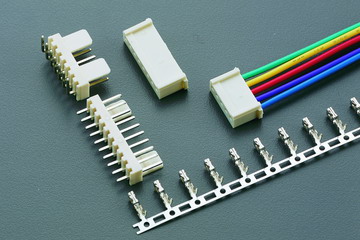

Wire to Board Connectors - Pitch_2.5 : 250H
Model Properties PDF
250H Housing
2518 Terminal
250PS Straight Headers
250PR Right Angle Headers
250PRS Right Angle Headers
250H
Specifications
Current rating : 5A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#22-30
Download PDF for this Series: Download PDF
Product Approvals
UL CSA
