Wire to Board ConnectorsPitch_2.52501H
  12500H 250H 2501H 2530 2570H Next Page

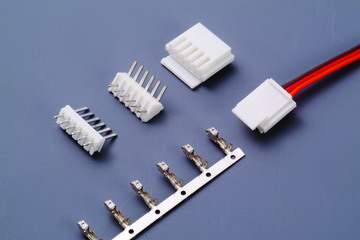

Wire to Board Connectors - Pitch_2.5 : 2501H
Model Properties PDF
2501H Housing
2501 Terminal
2501PS Right Angle Headers
2501PS-03N2 Straight Headers
2501PR Right Angle Headers
2501H
Specifications
Current rating : 1A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1500V AC/minuteApplicable wire : AWG#22-26
Download PDF for this Series: Download PDF
Product Approvals
UL
