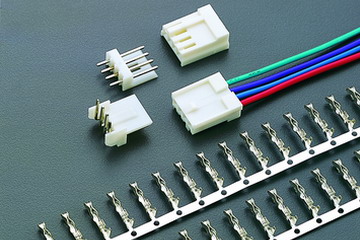

Wire to Board Connectors - Pitch_2.54 : 2542H-04
Model Properties PDF
2542H-04 Housing
2544 Terminal
2542PS Right Angle Headers
2542PR Straight Headers
2542PR-E Right Angle Headers
2542H-04
Specifications
Current rating : 3A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#22-28
Download PDF for this Series: Download PDF
Product Approvals
CSA
