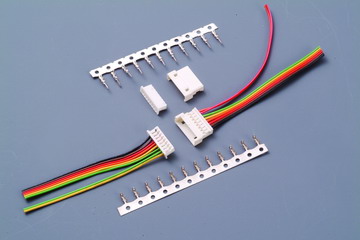

| M125CH |
Housing |
|
| M125CT |
Terminal |
|
|
|
|
| M125CH |
|
 |
| Current rating : 1A AC,DCVoltage rating : 125V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/20mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 500V AC/minuteApplicable wire : AWG#28-#26 |
|
|
|
|
|
|
|
|
