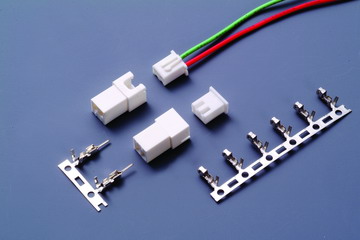

| 2530 |
Receptacle Housings |
|
| 2531 |
Terminal |
|
| 2530CH |
Plug Housings |
|
| 2530CT |
Terminal |
|
|
|
|
| 2530CH |
|
 |
| Current rating : 3A AC,DCVoltage rating : 125V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 1000MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#22-28 |
|
|
|
|
|
|
|
|
