| 2551 |
Terminal |
|
| 2550H-K |
Housing |
|
| 2550CH |
Housing |
|
| 2550CT |
Terminal |
|
|
|
|

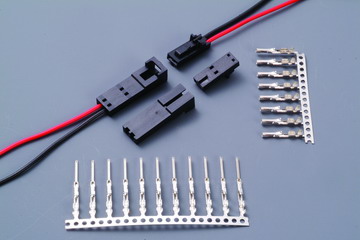

| 2550HK/2550CH |
|
 |
| Current rating : 3A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#24-28 |
|
|
|
|
|
|
|
|
