Wire to Board ConnectorsPitch_1.25H13H
  M125H M125AH 11251 H13H H14H Next Page

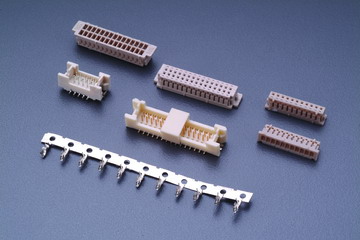

Wire to Board Connectors - Pitch_1.25 : H13H
Model Properties PDF
H13 Terminal
H13H Housing
H13PS Straight Headers
H13PR Right Angle Headers
H13H (Dual Row) Housing
H13PS (Dual Row) Straight Headers
H13H
Specifications
Current rating : 1A AC,DCVoltage rating : 100V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#26-30(H13)
Download PDF for this Series: Download PDF
