| E020 |
Terminal |
|
| E120 |
Terminal |
|

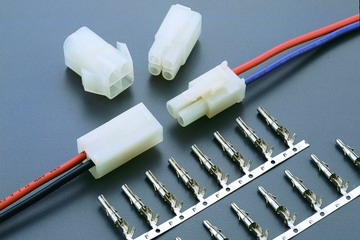

| E020H |
Plug Housings |
|
| E020H-E |
Plug Housings |
|
| E120H |
Receptacle Housings |
|
|
|
|
| E020H/E120H/E020H-E |
|
 |
| Current rating : 2.5A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 1000MΩ MIN.Withstanding voltage : 1500V AC/minuteApplicable wire : AWG#18-22 |
|
|
|
|
|
|
|
|
