Wire to Wire ConnectorsPitch_3.68E058H/E158H
  E058H/E158H

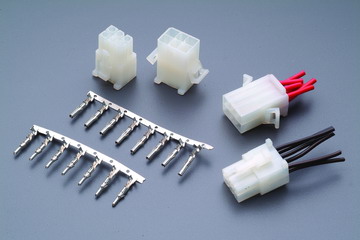

Wire to Wire Connectors - Pitch_3.68 : E058H/E158H
Model Properties PDF
E058 Terminal
E158 Terminal
E058H Plug Housings
E058H-K Plug Housings
E158H Receptacle Housings
E158H-K Receptacle Housings
E058H/E158H
Specifications
Current rating : 4A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1500V AC/minuteApplicable wire : AWG#18-22
Download PDF for this Series: Download PDF
Product Approvals
CSA
