| E661 |
Terminal |
|
| E761 |
Terminal |
|
| E661H-S |
Plug Housings |
|
| E761H-S |
Receptacle Housings |
|
|
|
|

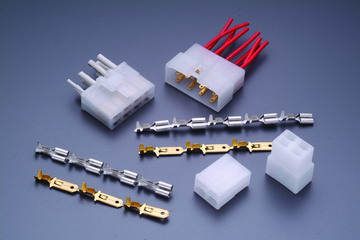

| E761H-S/E661H-S |
|
 |
| Current rating : 5A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#18-22 |
|
|
|
|
|
|
|
|
