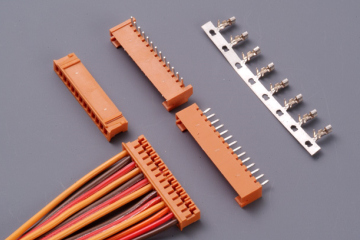

Wire to Board Connectors - Pitch_2.0 : 12100H
Model Properties PDF
12100H Housing
12100 Terminal
12100PS Straight Headers
12100PR Right Angle Headers
12100H
Specifications
Current rating : 1A AC,DCVoltage rating : 100V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1200V AC/minuteApplicable wire : AWG#26-28
Download PDF for this Series: Download PDF
