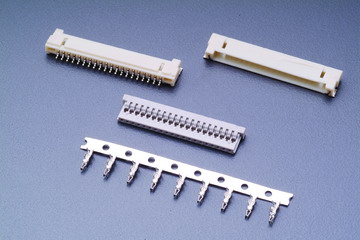

| H14H |
Housing |
|
| H14 |
Terminal |
|
| H14PR |
Straight Headers |
|
|
|
|
| H14H |
|
 |
| Current rating : 1A AC,DCVoltage rating : 150V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#28-32(H14) |
|
|
|
|
|
|
|
|
