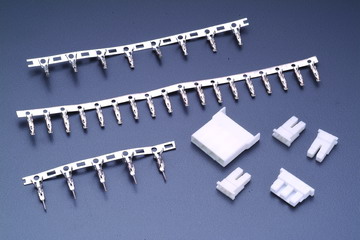

| 4001AH-03 |
Housing |
|
| 4001AT |
Terminal |
|
|
|
|
| 4001AH |
|
 |
| Current rating : 3A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1500V AC/minuteApplicable wire : AWG#22-24 |
|
|
|
|
|
|
|
|
