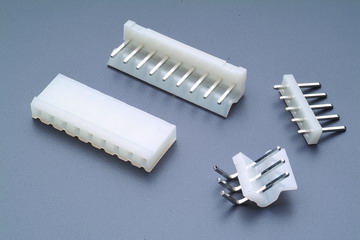

| 5080 |
Housing |
|
| 5081 |
Straight Headers |
|
| 5082 |
Right Angle Headers |
|
| 5083 |
Straight Headers |
|
| 5084 |
Right Angle Headers |
|
|
|
|
| 5080 |
|
 |
| Current rating : 5A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/10mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1000V AC/minuteApplicable wire : AWG#18-22 |
|
|
|
|
|
|
|
|
