| E1001H (Single Row) |
Housing |
|
| E001T |
Terminal |
|
| E001PR |
Right Angle Headers |
|
| E001PS |
Straight Headers |
|
| E001H (Dual Row) |
Housing |
|
| E001PS (Dual Row) |
Right Angle Headers |
|
| I10001 |
Housing |
|
|
|
|

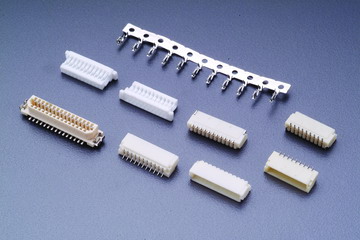

| E001H |
|
 |
| Current rating : 1A AC,DCVoltage rating : 50V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/20mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 1000MΩ MIN.Withstanding voltage : 500V AC/minuteApplicable wire : AWG#28-#32 |
|
|
|
|
|
|
|
|
