Wire to Board ConnectorsPitch_4.25016H
  5016H

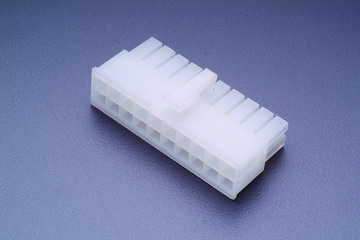

Wire to Board Connectors - Pitch_4.2 : 5016H
Model Properties PDF
5016 Terminal
5016H Housing
5015PS Straight Headers
5015PS-A Straight Headers
5015PR Right Angle Headers
5015PR-B Right Angle Headers
5016H
Specifications
Current rating : 6~7A AC,DCVoltage rating : 250V AC,DCTemperature range : -25°C to +85°C(including temperature rise)Contact resistance : Initial value/10mΩ Max.After environmental testing/20mΩ Max.Insulation resistance : 500MΩ MIN.Withstanding voltage : 1500V AC/minuteApplicable wire : AWG#18-24
Download PDF for this Series: Download PDF
Product Approvals
UL CSA
